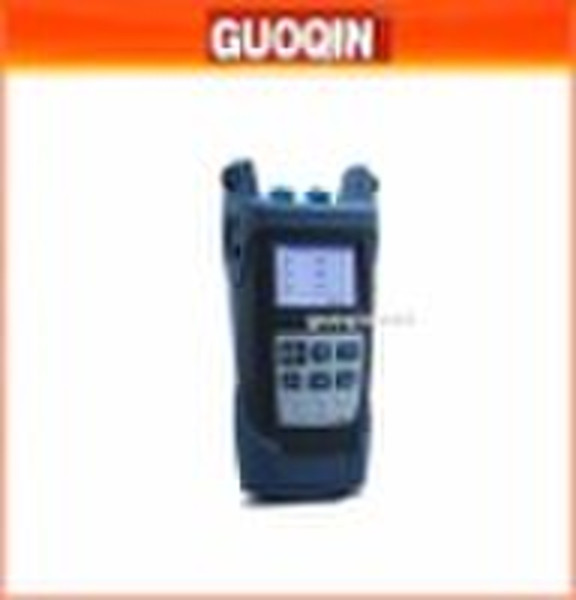

GQ-300 PON Optical Power Meter

pon meter Providing simultaneous measurement at all three wavelengths on the fiber (1490nm, 1550nm,1310nm ) Used in Burst mode measurement of 1310nm upstream 1000 measurement items can be saved in PON power meter or computer for data review. PON power meter offers up to 10 different threshold sets in total; Three status LEDs represents different optical signal conditions of Pass, Warn and Fail respectively. User self-calibration can be performed and Default mode can be retrieved in computer through the software. PON SC standard connector, easy to test 1310nm upstream measurement Pass zone(nm) 1260 1360 Isolation @490/1550nm(dB) >40 Measurement Range(dBm) -40 +10 1490nm downstream measurement Pass zone(nm) 1470 1505 Isolation @1550nm(dB) >40 Isolation @1310nm(dB) >40 Measurement Range(dBm) -40 +10 1550nm downstream measurement Pass zone(nm) 1535 1570 Isolation @1490nm(dB) >40 Isolation @1310nm(dB) >40 Measurement Range(dBm) -40 +20
